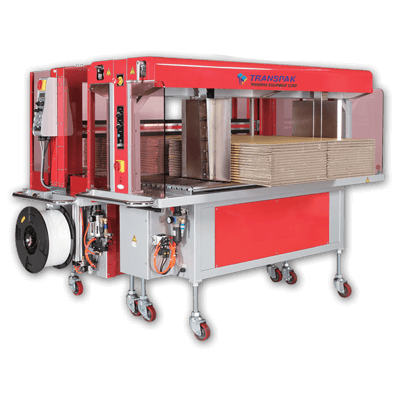

Transpak Mercury Full Otomatik Çember Makinesi
TP-702CCQ

With Correction

PI REQUEST FORMAnswered in 1 business day

Brand:	TRANSPAK
Product Code:	TP-702CCQ

Technical Details

Strap Width : 5-6-8 mm
Strap Tension : 1-32 kg
Conveyor Speed : 15-60 mt/minute
Power Requirement : 380 V 50/60 Hz 3 Ph
Frame Dimensions : H/450x1250 mm (M)
Working Speed : 26 circles/min Single Binding - 20 circles/min Double Binding
Strap Thickness : 0.45-0.55 mm
Motor : 24 V DC Motor
Air Requirement : 7.5 Lt / 6 Bar
Minimum Binding Dimension : L/300 W/200 H/20 mm
Maximum Binding Weight :
Features : Table Height Adjustable Between 700 mm - 1000 mm, Pneumatic Press, 3 Edge Correction
Options : Siemens Touch PLC HMI Screen, Optional Foot Pedal Switch, Automatic Error Alarm System and Lamp, H/450 mm W/1650 (L) mm, Changeable Frame Width
