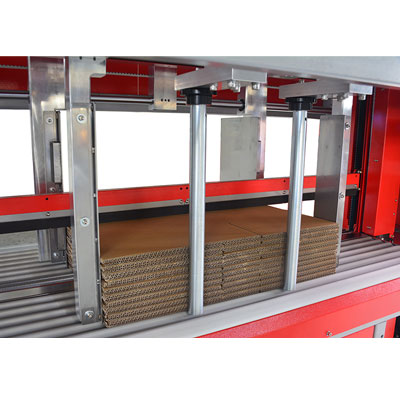

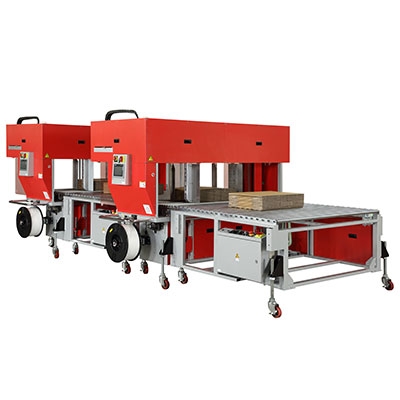

Transpak Full Automatic Strapping and Squaring System
TP-702CQ3
PI REQUEST FORMAnswered in 1 business day
Brand: | TRANSPAK |
Product Code: | TP-702CQ3 |
Technical Details
- Strap Type : PP Strap
- Strap Width : 5 mm - 6 mm - 8 mm
- Strap Tension : 1 kg - 32 kg
- Strap Thickness : 0.45 mm - 0.55 mm
- Frame Dimensions : 1650 mm (G) x 450 mm(Y)
- Working Speed : Up to 32 bundles/minute (single strap) Up to 26 bundles/minute (double straps)
- Minimum Product Dimensions : 350 mm x 200 mm x 50 mm
- Maximum Product Weight : 35 kg
- Sealing Type : Heating Sealer
- Conveyor Speed : 15-60 Meter / Minute
- Air Requirement : 7 Bar
- Motor : 3 Servo Motor + 3 DC Motor | 24V
- Power Requirement : 380V | 50-60 Hz | 3 Ph
- Features :
