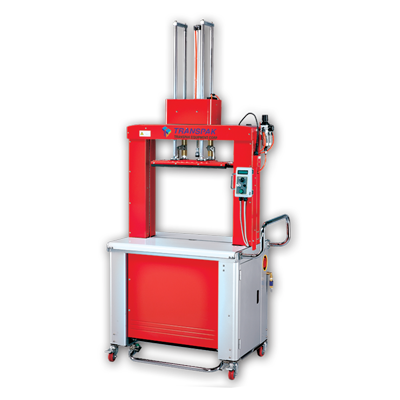

Transpak Mercury Full Automatic Side-Seal Strapping Machine
TP-702P
PI REQUEST FORMAnswered in 1 business day
Brand: | TRANSPAK |
Product Code: | TP-702P |
Technical Details
- Strap Type : PP Strap
- Strap Width : 5 mm - 6 mm - 9 mm - 12 mm
- Strap Tension : 1 kg - 32 kg | 5-6-9 mm | 1 kg - 45 kg | 12 mm
- Strap Thickness : 0.45 mm - 0.60 mm
- Frame Dimensions : 550 mm x 400 mm
- Sealing Type : Heating Sealer
- Working Speed : 5 mm : 47 Strap / Minute | 12 mm : 44 Strap / Minute
- Motor : 3 Servo + 2 DC Motor 24V
- Air Requirement : 7.5 Lt. / 6 Bar
- Net Weight : 227 kg
- Power Requirement : 220V | 50-60 Hz | 1 Ph
- Features : Electronic Tension ControlAutomatic Feeding SystemAdjustable Foot HeightFotoselEase of Use with Foot and HandPCB
- Options : Changeable Frame SizeH : 500 mm x 600 mm x 800 mmW : 650 mm - 850 mm - 1050 mm - 1250 mm - 1650 mmStainless Steel Body SUS 304 | TP-702S
- Origin : Taiwan
