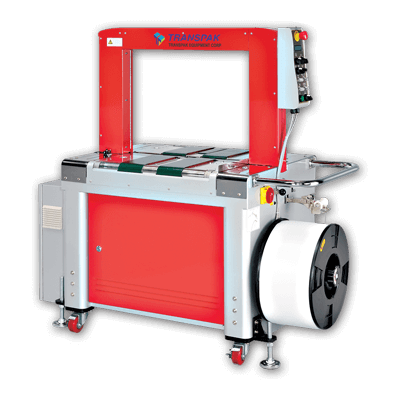

Transpak Mercury Transit Full Automatic Strapping Machine
TP-702B
PI REQUEST FORMAnswered in 1 business day
Brand: | TRANSPAK |
Product Code: | TP-702B |
Technical Details
- Strap Type : PP Strap
- Strap Width : 5 mm - 6 mm - 8 mm - 12 mm
- Strap Tension : 5-6-8 mm | 1 kg - 32 kg / 12 mm | 1 kg - 45 kg
- Strap Thickness : 0.45 mm - 0.60 mm
- Frame Dimensions : 650 mm x 500 mm
- Sealing Type : Heating Sealer
- Working Speed : 65 Strap / Minute
- Conveyor Speed : 10 - 60 Meter / Minute
- Motor : 3 Servo + 3 DC Motor 24V
- Net Weight : 225 kg
- Power Requirement : 220V | 50-60 Hz | 1 Ph
- Features : Electronic Tension ControlAutomatic Feeding SystemAdjustable Foot HeightSmall Package Binding Feature | W : 120 mm - H : 10 mmPCB
- Options :
Siemens PLC KontrolMaksimum Germe 45 kg | 8 mmDeğiştirilebilir Çerçeve ÖlçüsüH : 500 mm x 600 mm x 800 mmW : 650 mm - 850 mm - 1050 mmPaslanmaz Çelik Gövde SUS 304 | TP-702BS - Origin : Taiwan
