PI REQUEST FORMAnswered in 1 business day

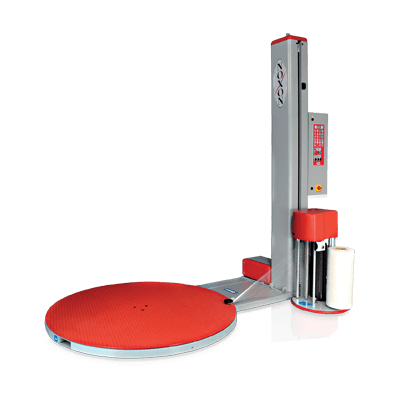

| Brand: | NOXON |
| Product Code: | NXN FRB X4 310 |
Technical Details

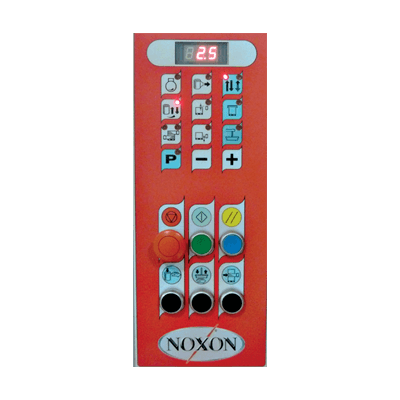

- Control Board : Programmable Control Panel
- Rotary table Speed : 4 - 10 Lap / Minute
- Tensioner Ratio : %300 | Electrical
- Rotary Table Diameter : 1500 mm | 1650 mm
- Rotary Table Height : 80 mm
- Maximum Pallet Height : 2200 mm
- Minimum Pallet Height : 500 mm
- Maximum Pallet Weight : 2000 kg
- Stretch Spool Speed : 1.4 - 4 Meter / Minute
- Max. Strech Pulley External Diameter : 300 mm
- Stretch Spool Inner Diameter : 76 mm
- Stretch Spool Height : 500 mm
- Suitable Stretch Thickness : 17 - 35 Mikron
- Maximum Stretch Weight : 20 kg
- Tensioner Ratio : 0.18 kw
- Power Requirement : 220V | 50 Hz | 1 Ph
- Features : Adjustable turntable speed
Adjustable up and down speed
Top winding feature
Bottom winding feature
Strong winding feature
Stretch film stretching feature
Easy to define user program
Altimeter feature
Photocell usage feature
Panel lock button
Up-down rotation feature
Starting from bottom winding feature
Top closing program (optional) - Options : Transpallet Entry and Ramp

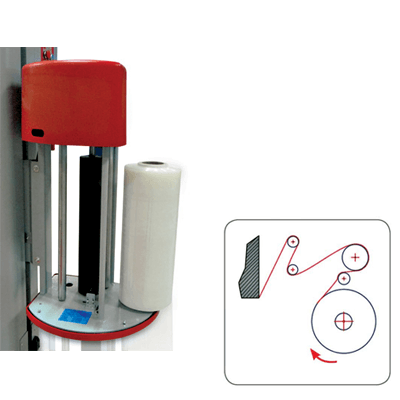

4-Way Pre-Tensioning System
Intermediate Loaded (Layered) Stretch Feature - Height Options : 2400 mm | 2800 mm | 3100 mm
- Origin : Italy
