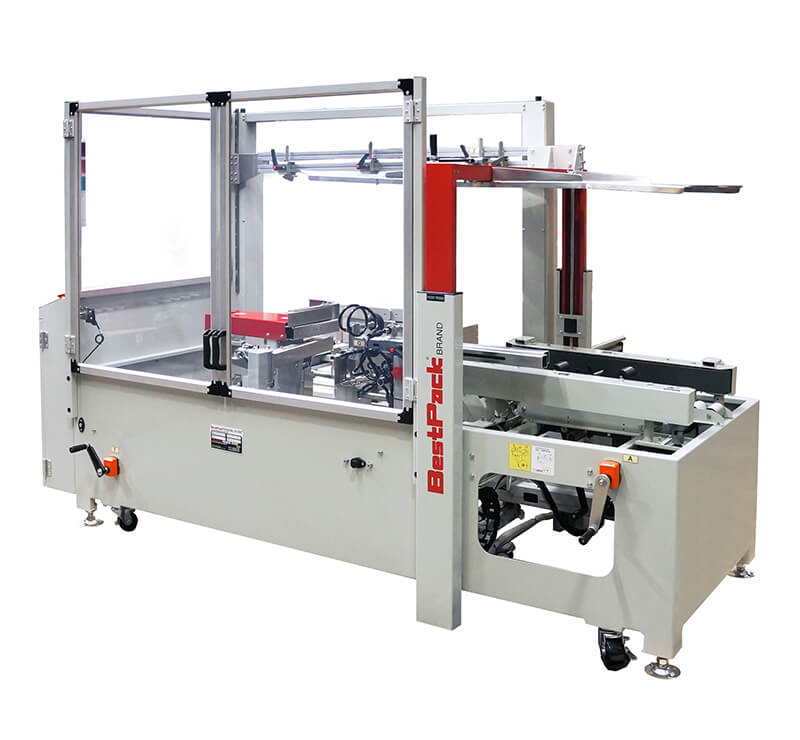

Bestpack Automatic Carton Box Making Machine
BP-ELVS-11
PI REQUEST FORMAnswered in 1 business day
Brand: | BESTPACK |
Product Code: | BP-ELVS-11 |
Technical Details
- Working Type : Side Belt | Bottom Taping | Pneumatic
- Minimum Product Dimensions : 190 mm x 180 mm x 150 mm
- Maximum Product Dimensions : 450 mm x 350 mm x 450 mm
- Working Speed : 13-15 Carton / Minute
- Carton Box Feeding Capacity : 100 Carton
- Motor : 2 Adet 140W
- Tape Dimesions : 5 cm | 2 inch
- Used Tape Reel Length : 1000 Meter
- Air Consumption : 450 NL / Minute
- Air Requirement : 100 PSI | 10+CFM
- Machine Weight : 400 kg
- Machine Dimensions : 2000 mm x 1900 mm x 1450 mm
- Power Requirement : 220 V | 50-60 Hz | 1 Ph
- Features :
Automatic Air Parcel Preparation
Manual Width and Height Adjustment

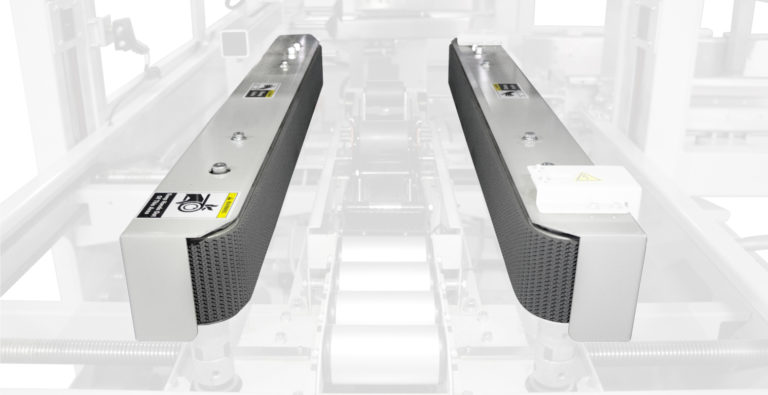

Side Belt Unit
2 Motors | Taiwan
High Speed Taping Unit

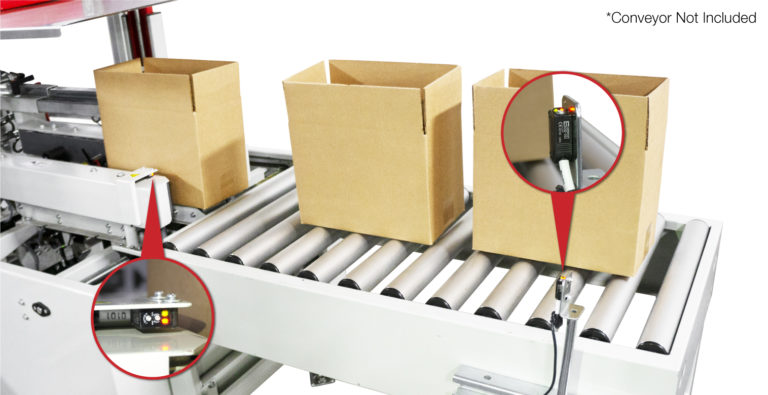

Automatic Box Detection
Omron PLC
Easy Box Size Change
Step by Step Adjustment Thanks to Analog Buttons

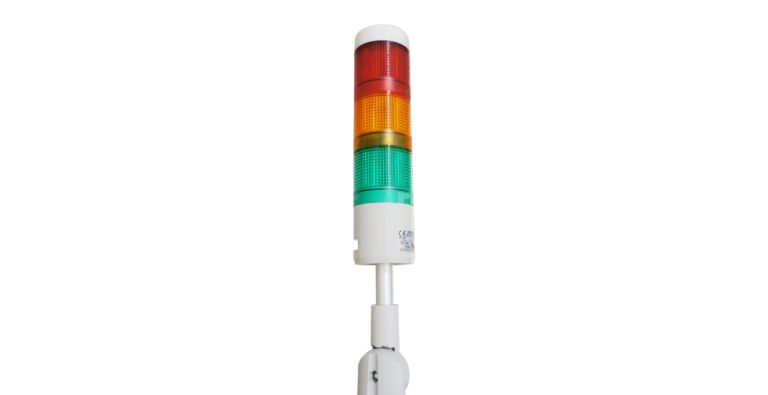

Automatic Error Alarm System and Lamp
Low Band Warning Sensor
Low Parcel Warning Sensor
Optional Feeding Unit Right and Left Input Preference
Operator Safety Switch
Auxiliary Vacuum Pump
